Quick Details

  • Application: Laser Cutting
  • Condition: New
  • Laser Type: Fiber Laser
  • Applicable Material: Metal
  • Cutting Thickness: 0.1-22mm
  • Cutting Area: optional
  • Cutting Speed: 10-35mm/min
  • CNC or Not: Yes
  • Cooling Mode: Water Cooling
  • Control Software: lasercut
  • Graphic Format Supported: AI, BMP, DST, DWG, DXF, DXP, LAS
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: Multitech
  • Model Number: IT1530-Fiber-500w
  • Certification: CE
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Product name: Fiber laser tube sheet metal laser cutting machine price
  • Laser type: IPG fiber
  • Laser power: 500W,1000W,2000W,3000W
  • control system: full-closed loop servo control
  • Driving mode: Double ball screw driving / Double gear rack
  • Working table: Fixed / Pallet Working Table
  • Positioning Accuracy: 0.05mm
  • Idle/Processing Speed: 48m/min , 24m/min
  • Cooling system: Water cooling system
  • Remark: Automatic exchange worktable, cover(option)

Packaging & Delivery

Packaging Details: Standard export plywood case
Delivery Detail: Shipped in 15 days after payment
Fiber laser tube 500w/750w/1000w/2000w sheet metal laser cutting machine price

<1>.Specifications of sheet metal laser cutting machine price:

1.The double ball screw closed-loop system and imported open CNC system ensure high processing accuracy, high working efficiency and high speed.

2.Standard collocation of 500W fiber laser generator and optional 1000W~2000W fiber laser generator. Low operation and maintenance cost and maximum long-term investment returns and profits.

3.Enclosure design meets CE standard, reliable and safe processing. Shuttle table/pallet working tables convenient for material uploading and downloading and further promotes working efficiency.

4.Aiming at high speed cutting, we design and manufacture strengthened welded machine body after 2 times of aging process which ensures long-term accuracy and stability of performance.

5.Standard collocation of dual-pressure gas control system of 3 gas sources (high pressure air, nitrogen, oxygen) meets the processing requirement of all kinds of materials. Easy operation and low cost.

6.Standard collocation of automatic nesting software (including material management and optimized processing technology) and database of process parameters is provided for easy operation and simple management.

7.Optimized optical lens, specially designed nozzle and sensor technology realize more smooth and more stable cutting.

<2>. Advantage of sheet metal laser cutting machine price:
The quality fiber laser beam results in faster cutting speeds and higher quality cuts compared to other cutting solutions. The key advantage of a fiber laser is its short beam wavelength (1,064nm). The wavelength, which is ten times lower than that of a conventional C02 laser, generates high absorption into metals. This makes the fiber laser cutting machine price become a perfect tool for cutting sheets of stainless steel, mild steel, aluminum, brass, etc .



<3>Main parts show:

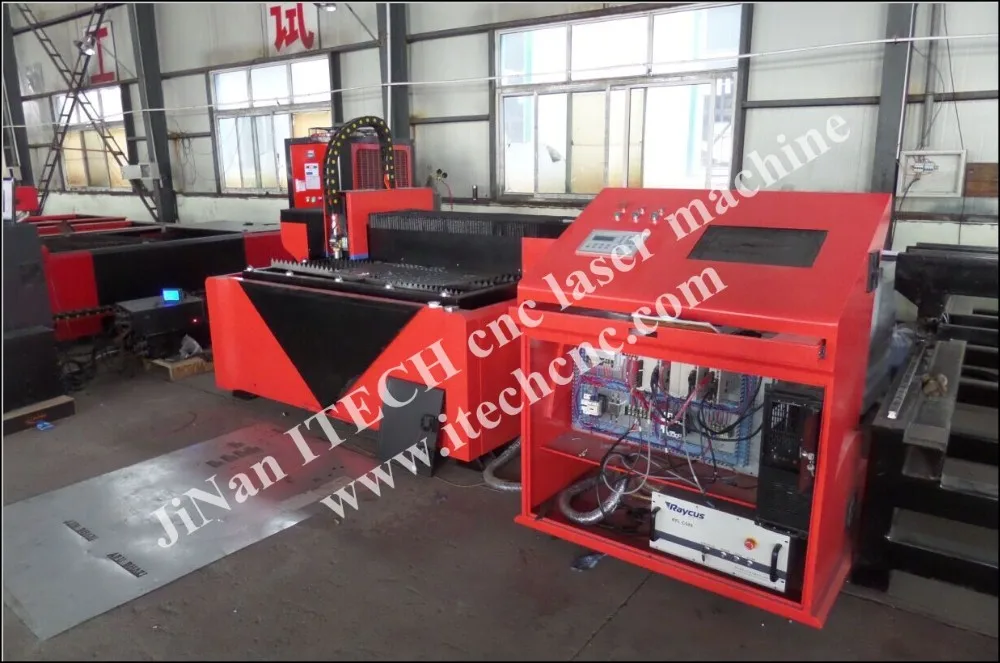

<4>. Details of the machine in the factory:



<5>.Advantages Comparison between Different Types of sheet metal laser cutting machine price:





Fiber Laser Generator

YAG Lamp Pump Laser Generator

CO2 RF Metal Laser Tube

Power

200W~2000W

500W/650W/850W/1300W

300W/500W

Advantages

Excellent laser beam quality, high cutting precision, high cutting speed, high efficient photoelectric conversion rate, low use-cost and maintenance cost, easy operation and convenient maintenance

Compared with fiber laser generator and CO2 RF metal laser tube of the same power, it has lower price, thicker material cutting ability, wider application field and lower one-time investment.

It can cut metal sheets and non-metal materials. Wider range of applicable materials. Adjustable output power. Maintenance free. Easy to operate and convenient to use.

Applicable Materials

All kinds of metal sheets and pipes

All kinds of metal sheets and pipes

All kinds of metal sheets, acrylic, wood board and other nonmetal materials

Applicable Industry

Sheet metal, hardware, watches, metal art craft works, etc.

Sheet metal, kitchenware, metal letters and accessories & hardware, etc.

Sheet metal, advertising, furniture and models, etc.



<6>.Technical parameter of sheet metal laser cutting machine price:



ModelIT-Fiber-1325IT-Fiber-1530IT-Fiber-2040
Working Area2500X1300mm3000X1500mm4000x2000mm
Laser TypeIPG Fiber laser generator
Laser Power500W/1000/2000W/3000W
Laser Wavelength1060 nm
Beam Quality<0.373mrad
Positioning Accuracy≤ ±0.03mm/m
Re-positioning Accuracy≤±0.02mm/m
Max Cutting Speed0-40m/min(depending on material and thickness)
Power Supply Rated Voltage3-phase 380V/50Hz
X-axis Stroke2500mm3000mm4000mm
Y-axis Stroke1300mm1500mm2000mm
Z-axis Stroke120mm
Working TableRack working platform
Control SystemLaserCut V3.5 CNC control system
Location SystemRed dot indicator
Water Cooling SystemConstant temperature water chiller
Machine Weight2000-8000kg
Machine Dimension3500x1800x1600mm4300x2500x1600mm5000X2900X1600mm
RemarkAutomatic exchange worktable, cover(option)



<7>.Samples show of sheet metal laser cutting machine price:





<8>.Max. cuttiang thickness:

We will provide the most suitable laser solution according to below information:

1,What metal need to process? copper,brass,alu or stainless steel?

2,What is the size and thickness?

3,What is your business industry? sheet metal,advertising signage or art craftworks or.. ?

4,Are you end-user or machine reseller?



<9>.Our services:

Before

We would always be here to provide any information you need at the first time,and give professional suggestions according to your real needs for free

After

1) one year free wanranty under normal use and we give  maintenance for l8 months.
2) first class engineers give 24hours service on Internet and Telephone, free instructions and problem solving.
3) Free training to make sure you master  the operating of the ATC cnc router





<10>.Our factory and customer:

1.

Multitech product is widely used in almost all the materials you can think of

2.

Multitech company is specialized in CNC Router and laser machine manufacturing and selling

3.

Multitechmachine with high precision and excellent reputation is the most reliable product you

 can choose.

4.

Multitechcompany has all kinds of machines in store, the delivery time is much shorter than

other companies

5.

 Multitechcompany has international technical service office and provides 24 hours online services

 and technical supports for customers



We welcome customers, business associations and friends from all parts of the world to contact us and seek cooperation for mutual benefits!

If you want to know more about us,Welcome To Contact us
